Індуктивний датчик SI8-C1 PNP NO залишилось 5

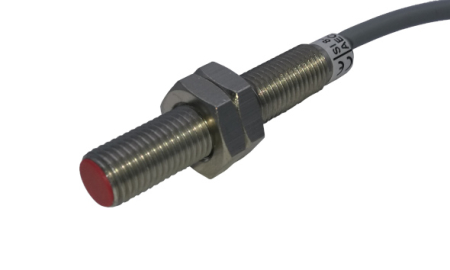

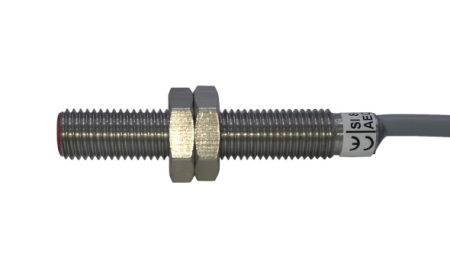

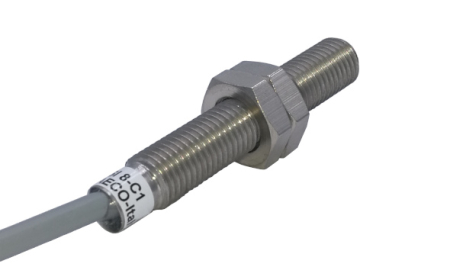

Індуктивний датчик SI8-C1 PNP NO

€32.50 (Включ. податки)

Electrical data
Power supply type :	Direct current
Working voltage [V]:	10 ÷ 30
Current consumption [mA]:	< 12 mA @ 24Vdc
Protection class :	III
Reverse polarity protection :	Presente
Outputs
Electrical design :	PNP
Function :	NO
Max voltage drop [V]:	< 1.8
Max output current [mA]:	200
Max switching frequency [Hz]:	2000
Short circuit protection :	Present
Overload protection :	Present
Detection zone
Switching distance-Sn [mm]:	1.5
Real sensing distance-Sr [mm]:	1.5 ±10%
Operative distance-So [mm]:	0 ÷ 1.22
Accuracy and Deviations
Correction factor :	Stainless steel: 0.9 - Brass: 0.5 - Aluminium: 0.4 - Copper: 0.4
Hysteresis [%Sr]:	< 10
Switching point drift [%Sr]:	-1
Repeatability [%Sn]:	< 3
Environmental conditions
Temperature limits [°C]:	-25°C ÷ +70°C
IP rating :	IP65-IP66-IP67
Display and control elements
Display :	Output switching status - 1 x LED: Yellow
Mechanical data
Housing :	Threded type
Thread designation :	M8x1
Dimensions [mm]:	M8x1 - L=50
Materials :	Housing: AISI 303 - Sensing area: POM red - Lock nuts: Nickel-plated brass
Mounting :	Embeddable
Weigth [g]:	60
Electrical connection
Cable :	2 m - PVC/PVC - 3 x 0.14 mm²
Compliance to Standards / Directives
Directives compliance :	2014/30/EU -Electromagnetic compatibility directive (EMC)
Standards compliance :	EN60947-5-2 - Product standard
